Hypervolt

2cd0ad_733eb8dea3fb49cd98ee50317be82c85_mv2

This Electric Vehicle Charger Is recommended for Domestic EV ChargePoint Installations

Mobile control and monitoring
Type 1 & Type 2 extension leads available
5m Type 1 or Type 2 cable included in the standard price
7.5m for an extra £60, 10m for an extra £120 available
Tariff/scheduled charging mode
3 year warranty as standard, even without OZEV
OZEV Eligible

Connected Through Wi-Fi Or Ethernet – Hypervolt chargers use your Wi-Fi or Ethernet network to offer a seamless connected experience at no extra cost

Install Without An Earth Rod – With built in state-of-the-art pen protection, Hypervolt chargers do not require an Earth Rod to be installed. Faster, cheaper, and much safer!

Free Over The Air Software Updates – Hypervolt chargers are automatically upgraded to the latest firmware over-the-air, allowing you to easily benefit from the latest features!

Charging Driven By Energy Tariff – Take advantage of the cheapest night rates, and take advantage of your smart meter! Just plug in your car and let your charger work for you!

Integration With Your Smart Home – Control your charger using your voice, using Amazon Alexa! Check status, control brightness, schedule charging, control cost, and more!

Automated Load Management – Never have to worry about tripped fuses or using all your appliances. Hypervolt chargers automatically adjust to household load.

Integrated Cost Control – Take maximum advantage of the cheapest energy tariffs, through advanced cost reports, scheduled charging, and more!

Optimal For Solar Charging – Charge your car directly from the sun! Hypervolt is compatible with all solar panel installations, enabling you to charge for free, forever!

Technical Aspects

General Specifications

Connection capacity – Single Phase, 7kW AC

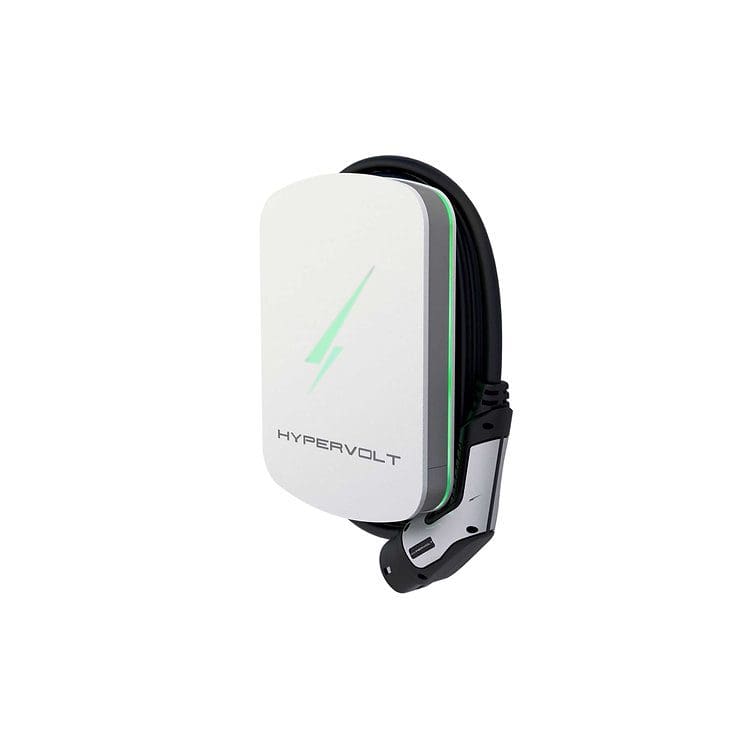

Charging connector – Tethered, IEC 62196/Type 2 OR SAE J1772/Type 1

Tethered cable length – 5 Meters

Charging protocol – Mode 3 (EN/IEC 61851)

PEN fault protection – Built-in open PEN protection (detection + isolation) in compliance with Amendment No 1 of BS 7671:2018”. Hypervolt Home 2.0 can safely be installed without an earth-rod.

RCD Protection – Integrated 6mA DC RCD. Only type A RCD + 32A MCB or equivalent protection is required at source.

Service fuse protection – Automated load management via wired CT. Remote maximum current limiter function is available via dashboard and App

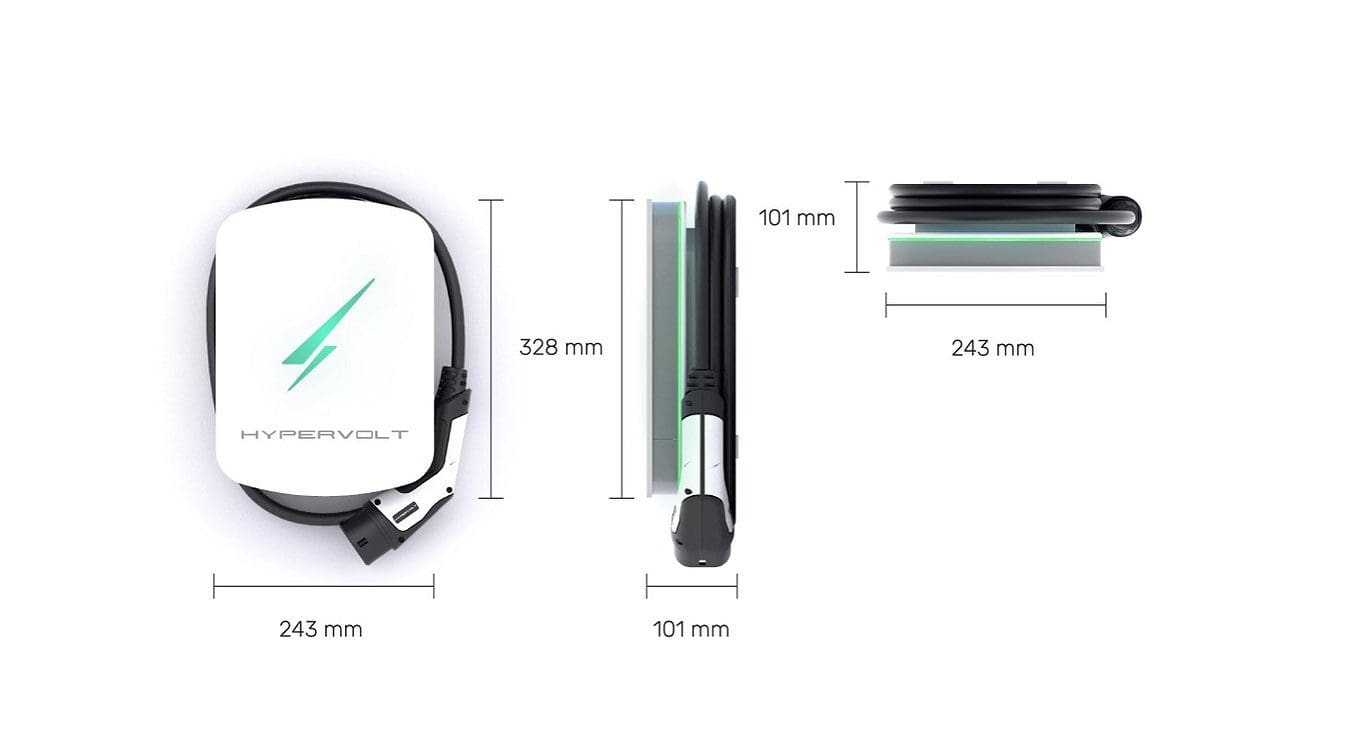

Dimensions (H x W x D) – 328mm x 243mm x 101mm

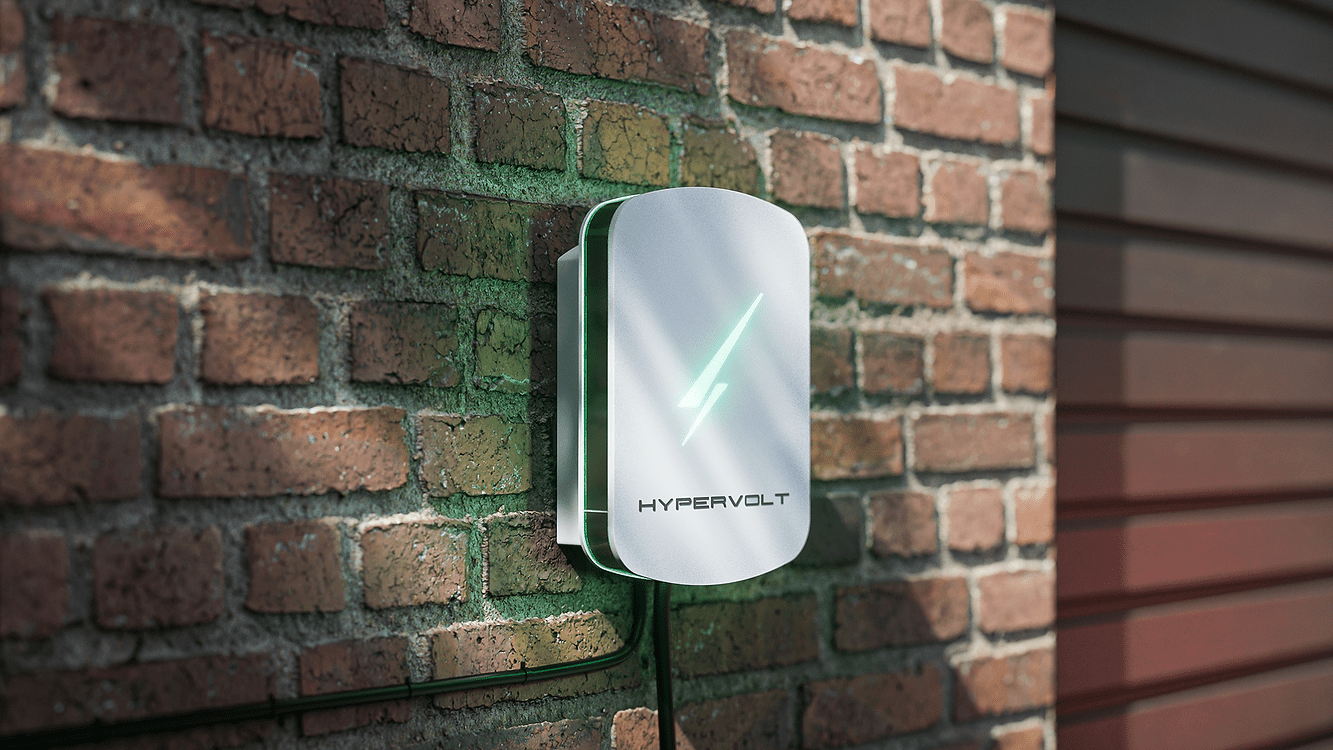

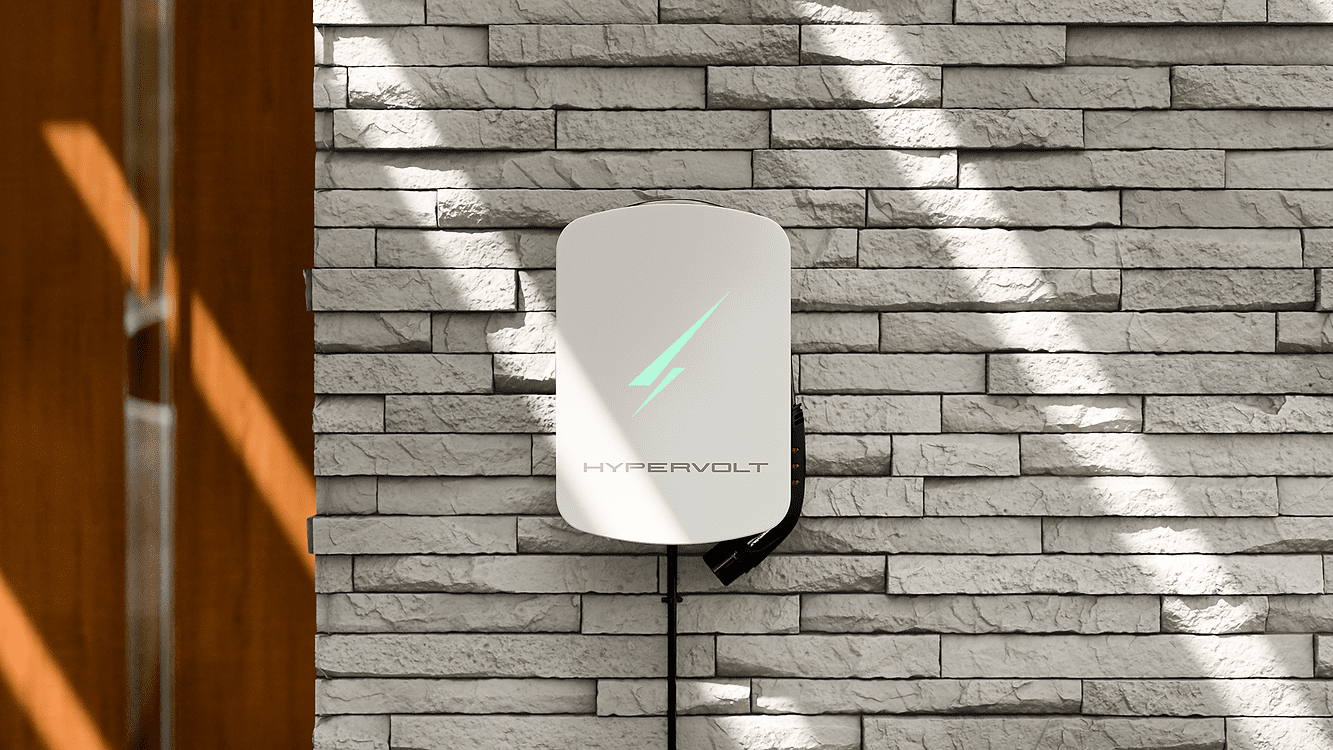

Mounting type – Wall mounted

Colour – White/Grey

Shipping weight – 5.2kg

Unit material – ABS composite

Electrical Specifications

AC Charging Output – 7kW, 32A@230V AC

Charging power may vary based on vehicle make and model as well as electrical installation setup.

Input Voltage – 230 ± 10% V AC

Input Frequency – 50 Hz

Input Current (max) – 32 A

Energy Monitoring – Power and energy monitoring as standard, internal MID grade meter

Overcurrent protection – Internal overcurrent protection (software) plus MCB protection at source

Connectivity & User Interface

Status indication / HMI – Multi-colour LED ring and front cover signage

Standard – Wi-Fi 802.11b/g/n @2.4 GHz, Bluetooth

Communication protocol – OCPP 1.6/2.0

Network Security – State-of-the-art Cryptography Engine for fast and secure WLAN Connections with 256-Bit Encryption
