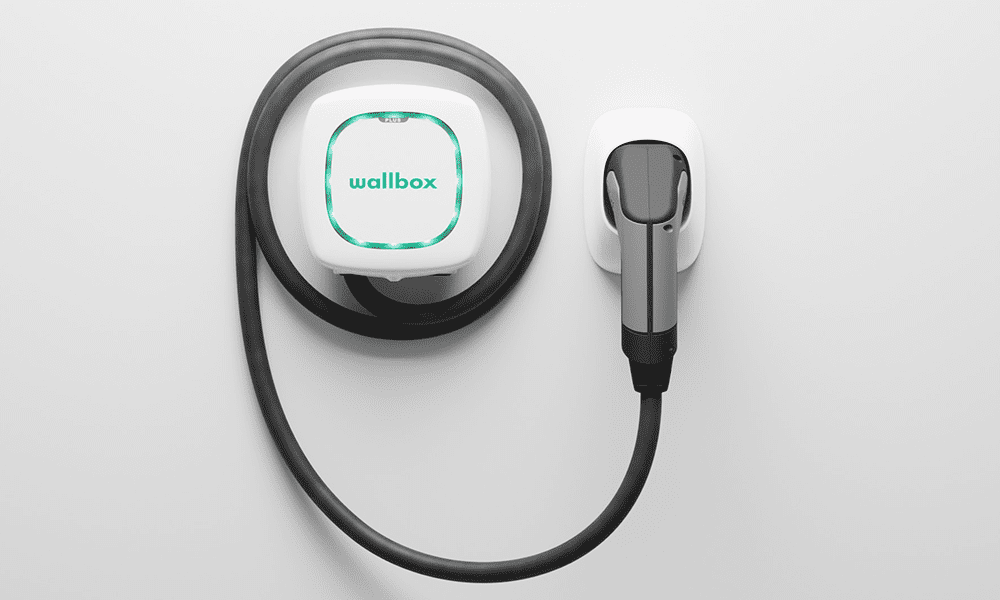

Wallbox Pulsar Plus

This Electric Vehicle Charger Is recommended for Installations

Wallbox Pulsar Plus was created to give your electric vehicle a powerful smart charger in an incredibly small size. It is perfect for daily use at home. Its compact dimensions and minimalist design fits any garage and is enhanced by multiple functions found on the myWallbox app.

  • It’s compact and smaller than a toaster and lighter than a laptop.
  • It’s powerful and can deliver up to 22kW of charging capacity.
  • The Pulsar Plus can connect to any smart device via Wi-Fi or Bluetooth and you can use the myWallbox app to easily control your charger.
  • You can schedule charging sessions that take advantage of off-peak energy rates, monitor your charger status , and more through the myWallbox app.
  • The Pulsar Plus is available with type 1 and type 2 charging cables.
  • It’s certified want and dust resistant with IP54 and IK08 protection ratings, allowing for safe installation indoors or outdoors.

Technical Aspects

General Specifications

Charger:  AC
Colour:  White or Black
Connector:  type 1 or type 2 (7.4 kW) / type 2 (11 kW and 22 kW)
Charging mode:  Mode 3
Dimensions (without cable):  166 x 163 x 82 mm
Weight:  1 kg (without cable)
Cable length:  5m (7m optional)
Earthing Protection:  Built In Earthing (for the 7,4kW version)

Electrical Specifications

Maximum Charging Power:
7.4 kW (1 Phase) / 22 kW (3 Phase)
Rated Voltage AC ± 10%:
220 V to 240 V (7,4kW)
400 V (11kW and 22kW)
Rated Current:
32 A (7,4 kW – 1 Phase)
16 A (11 kW – 3 Phase)
32 A (22 kW – 3 Phase)

Cable Section:
5×10 mm²

Configurable Current:
From 6 A to rated current

Protection Rating:
IP54 / IK08
Residual Current Detection:
DC 6 mA

Connectivity & User Interface

Connectivity: Wi-Fi / Bluetooth
User Identification: Wallbox App
User Interface: Wallbox App / myWallbox Portal
Charger Status Information: RGB LED / Wallbox App / myWallbox Portal
Included Features: Power Sharing
Optional Features: Power Boost / Dynamic Power Sharing / MID Meter
Communication Protocol: myWallbox / OCPP 1.6j

For further information about this EV ChargePoint or to book your EV ChargePoint installation then please contact us using the details or form below.
